Baseball windscreen buyer's guide
Baseball is a two-problem venue. Hitters need a dark, uninterrupted backdrop, and the fence has to survive spring wind with the screen still attached. Those pull in opposite directions, which is why an 89% open mesh is the default here rather than the highest blockage available.
Key takeaways
- Recommended blockage for baseball: 89% open mesh on the outfield and foul lines.
- Standard panel to start from: 6 ft × 50 ft on a 6 ft outfield fence, ordered to the run you measured.
- Step up to 95% only for the batter's eye and sponsor panels, on short braced sections.
- Attachment, not fabric, is where mid-season failures start. UV-rated ties or hog rings through every grommet.
01 Who buys it here
The facility manager, athletic director or field maintenance lead specifies the screen and installs it. The athletic director signs the purchase order, usually in the same budget line as infield mix and mound clay. For districts, the facilities manager sets one standard across every diamond so crews are not relearning grommet spacing at each site.
Travel programs and booster clubs buy the same panels with sponsor logos printed on them, one 50 ft section per sponsor, so a sponsor change is one panel, not a whole outfield.
02 Sizes that fit this venue
Order to the fence height you measured. Screens are finished 4 in shorter than the fence so the panel sits inside the top and bottom rails, and lengths run in 50 ft sections.
| Fence | Panel | Series | Blockage | Typical use | Price | Configure |
|---|---|---|---|---|---|---|

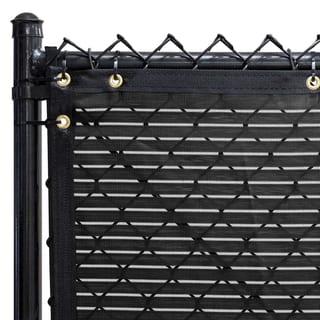

| 6 ft | 6 ft × 50 ft | 600 Series - Commercial Open | 89% | outfield run | $289.50 $5.79/ft | Configure |
| 8 ft | 8 ft × 100 ft | 600 Series - Commercial Open | 89% | 8 ft outfield fence | $699.00 $6.99/ft | Configure |

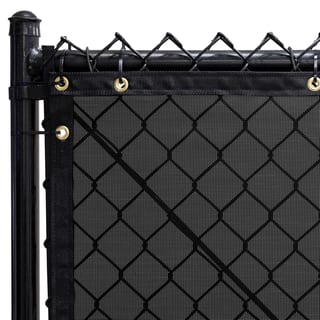

| 6 ft | 6 ft × 100 ft | 300 Series - MAXFlex PVC Mesh | 80% | foul line, windy sites | $509.00 $5.09/ft | Configure |

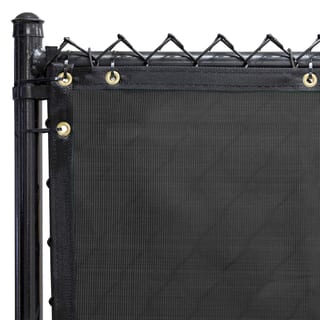

| 8 ft | 8 ft × 50 ft | 750 Series - Commercial Block | 95% | batter's eye and bullpen privacy | $359.50 $7.19/ft | Configure |
03 Blockage for baseball
Windy open complexes and seasonal runs. Lets gusts pass instead of loading the posts.
Clean dark backdrop for ball visibility with the airflow an outfield fence can take.
Batter's eye and sponsor panels where you want a solid wall of color on a short, braced section.
Run 89% on the outfield and foul lines. Step up to 95% only behind the batter's eye or where you are printing sponsor graphics, and put those on braced posts. If your complex sits in open ground with regular 30 mph gusts, 80% or 85% loads the posts less and lasts longer than a higher-blockage panel that tears at the grommet line.
Color matters as much as percentage. A dark green or black screen with a consistent weave gives hitters the backdrop; the blockage figure is about wind and privacy.
04 The series that apply
The two or three screens that fit this venue, priced per foot on a 6 ft fence.
05 Install and season timing
Two people per 50 ft panel, roughly 30 minutes a panel with UV-rated ties or hog rings through every grommet. Install after the fence is repaired and before opening day. Pull each panel taut along the top first, then the bottom, then the corners. Most programs leave the open mesh up year-round and inspect the grommet lines each spring; printed and vinyl panels come down for winter.
-
Repair the fence first
Bent top rail and loose fabric are what tear screens, not wind.
-
Tie every grommet
One bag of 100 UV-rated ties covers about 50 ft. Hog rings with the pliers hold just as well.
-
Pull top, then bottom
A taut top edge stops the flapping that saws through grommets.
06 Budget worksheet
A planning number for the whole program, priced on 600 Series - Commercial Open before finishing options and shipping.
Questions we get about baseball
Ready to price your run?
The baseball page has the sizes above with the configurator pre-filled, or start from the recommended screen.
